AC1200 Coherent Module



acacia-product-ac1200_small

The AC1200 Coherent Module is based on our Pico digital signal processor (DSP) ASIC. Utilizing two wavelengths, with up to 600 Gbps capacity each, Acacia’s AC1200 supports transmission speeds of up to 1.2 Tbps in a footprint which is 40% less than the size of a 5” x 7” module supporting 400 Gbps today. The versatile AC1200 will support multiple network applications, including Cloud/DCI, metro, long-haul and submarine.

In addition to its higher capacity and density, Acacia’s AC1200 introduces several new key features designed to enable network operators to improve efficiency while reducing network costs.

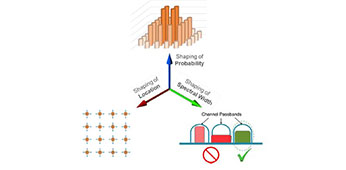

A primary capability of the AC1200 is 3D-shaping which enables fine-tune adjusting of the line-side modulation characteristics helping network operators optimize capacity and reach for their particular network or link.  The key features enabling 3D-shaping include:

  • Shaping of the constellation points’ probability to increase capacity using Acacia’s patented Fractional QAM modulation
  • Shaping of the constellation points’ location to increase reach
  • Shaping of the spectral width to match the available channel passband by adapting the baud rate

Fractional QAM Modulation provides users with the ability to select very fine resolution of QAM constellations for optimal capacity.  And an Adaptive Baud Rate capability provides users with the ability of continuous baud rate adjustment to optimize utilization of available spectrum.

Additional key features of the AC1200 includes:

  • Enhanced Turbo Product Code SD-FEC – offers ultra-high net coding gain (NCG) to extend reach, while maintaining low power dissipation
  • Internal crossbar/interconnection switch fabric – enables increased traffic flexibility, including mapping of 3x400GbE client traffic on to two line-side wavelengths carrying 600Gbps each

Acacia’s AC1200 module will also support security encryption and a wide range of host interfaces designed to reduce or eliminate the need for costly external devices. Acacia will support its AC1200 with a software development kit designed to streamline the integration and allow customers to more quickly take advantage of this highly flexible solution.

Key Acacia technologies supporting its AC1200 coherent module are:

  • High performance DSP ASIC in the latest CMOS node with the low power dissipation that the industry has come to expect from Acacia products;
  • Highly integrated silicon photonics circuit that supports high baud rates while reducing interconnect costs; and
  • Co-optimization and short connection between the DSP ASIC and Optics provides high fidelity for the high speed interconnects.

With samples planned to be available in first half of 2018, the AC1200 is well positioned to help carriers and content providers meet their growing bandwidth demands.

Contact us for more information.
