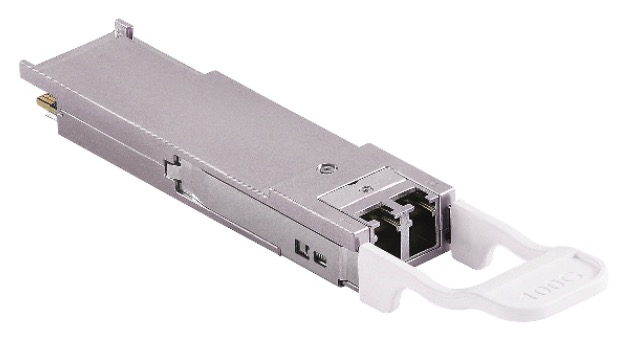

QSFP28
The Acacia QSFP28 100ZR optical module makes the benefits of coherent technology accessible to a wide range of applications such as access aggregation and campus/enterprise interconnects where a transition from 10G links to 100G is required to alleviate bandwidth constraints.
Low Power
Optimized for low power consumption
Legacy Support
Brings coherent benefits to legacy QSFP28 ports
Expand Applications
Enables applications such as IP over DWDM and longer reaches
100G DWDM Access QSFP28 Pluggable Coherent Optical Module
Edge, Access | Enterprise/Campus | Cable/fiber deep | 5G wireless x-haul
Key Features
Meets growing bandwidth demands in edge, access, aggregation, and enterprise/campus networks.
Provides a scalable traffic aggregation solution, as well as an upgrade path to migrate from existing 10G networks to higher-capacity 100G coherent links.
The QSFP28 100ZR module’s streamlined design provides high-volume manufacturing capabilities while maintaining high performance and quality.
Supports 100Gbps transmission speeds in an industry-standard, pluggable QSFP28 form factor.
Enables reaches from 160km point-to-point up to 500km DWDM links1, and expands IP over DWDM applications to the growing 100G network segment.
Specifications
Tx Power
0dBm
Reach1
500 km (amplified link)
160km (unamplified link)
Client Formats
100GbE
Data Rate, Modulation
100G, QPSK
Wavelength
Tunable C-Band
Connector
LC
Case Temperature
-20° C to 85° C
Fiber
SMF
Interoperability
IEEE 802.3ct / ITU-T G.709.2
1Actual reach depends on fiber link conditions
Silicon Photonics
High-speed highly compact and scalable optical integrated circuits in silicon
Digital Signal Processing
Industry leading innovative low power and high optical performance DSP design
